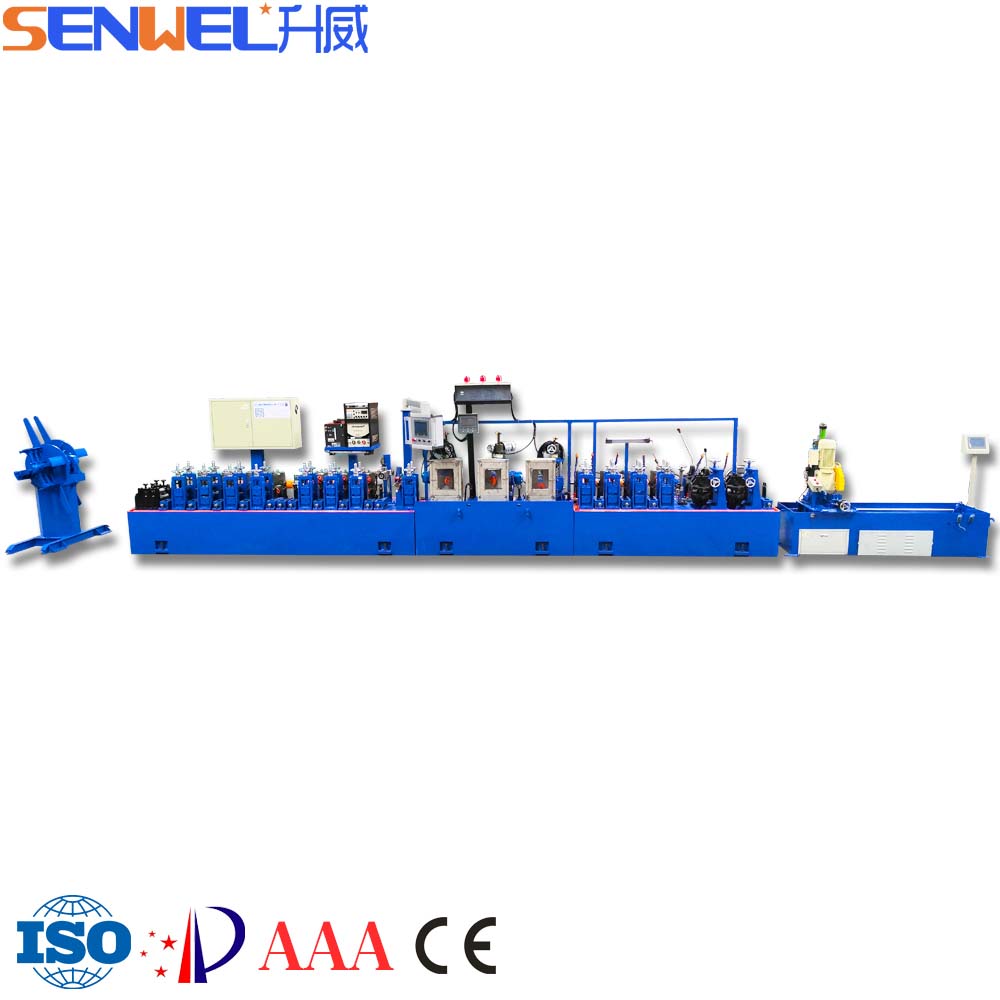

厚壁管焊管機-Thick Wall Pipe Mill
圓形/方形/矩形等不銹鋼/銅/碳鋼/鐵/鍍鋅等金屬厚壁管焊管機械設備生產線
Round/Square/Rectangle Etc Stainless Steel/Copper/Carbon Steel/Iron/Galvanized Etc
Thick Wall Metal Pipe Making Machine Welding Tube Mill
厚壁鋼管焊管機是以生產加工壁厚相對較厚，對機組設計要求較高的設備。可以用于生產結構支撐管、框架、壓力管道等要求高的工業類和裝飾類管材。此外，通過制管機配合模具設計加以焊接，可以直接輕松擠壓出不同的形狀成管材，如圓形，方形，矩形等形狀，適用于不銹鋼、鐵、碳鋼等金屬材質的管材制造，適用于歐美地區的管材生產加工。
管材材質：不銹鋼/鐵/碳鋼/鈦鋼等。
管形：圓/方等
應用領域：建材/工程管/水管/流體管/鈦管/石化管/航天汽車管/飲用食品級管/衛生級管等領域
Thick wall metal steel pipe welding making machine tube mill is a professional equipment with relatively thick production and processing wall thickness and high requirements for unit design. It can be used to produce industrial and high standard decorative pipes with high requirements such as structural support pipe, frame and pressure pipe. In addition, by welding the pipe making machine with the die design, different shapes of pipes can be extruded directly and easily, such as round, square, rectangular and other shapes, which are suitable for the manufacture of stainless steel, iron, carbon steel and other metal materials.And those are also suitable for the production and processing of pipes in Europe and America.
TUBE MATERIAL:Stainless steel / iron / carbon steel / titanium steel, etc.
PIPE SHAPE:Round Square Etc
USDAGE:Building materials / Engineering pipeline/Water pipe / Fluid pipe / Titanium pipe / Petrochemical pipe / Aerospace Automobile pipe /Drinking food grade pipe/Hygienic grade pipes Etc
生產工藝/Production Process
開卷—LOGO/矯平—成型—焊接—打磨—定徑—調直—切割—落料
1:Decoiler 2:Flattening 3:Forming 4:Welding 5:Polishing 6:Sizing 7:Straightening 8:Cutting 9：Unloading
型號參數/Model & Parameter
型號 Model | GXG-40 | GXG-50 | GXG-60 | GXG-70 | GXG-80 | GXG-90 |
圓管管徑范圍Circular tube range(mm) |
?25.4—50.8 1”—2”
|
?31.8—76.2 1-1/4”—3” |
?50.8—114.0 2”—4-1/2”
|
?76.2—168.0 3”—6-5/8” |
?114.0—219.0 4-1/2”—8-1/2” |
?158.0—273.0 6-1/5”—10-3/4” |
壁厚范圍 Wall thickness range(mm) | 0.5—2.5 | 0.5—3.0 | 1.0—4.0 | 1.0—5.0 | 1.5—6.5 | 2.0—8.0 |
細節展示/Detail
制造工藝/manufacturing process Display
圖紙?jiān)O(shè)計—坯件鑄造—粗加工—CNC精加工—箱體加工—龍門銑床加工—部件組裝—機臺組裝—機組調試—包裝—裝車—安裝調試培訓
Design——Blank casting——Rough machining——CNC finish machining——Box processing——CNC Planer Mille processing——Parts assembly——Machine assembly——Debugging & testing——Packing——transport—— Installation and commissioning training
質量=設計+技術+經驗+材料+設備
Quality = Design + Technology + Experience + Materials + Equipment
