管材材質：不銹鋼/鐵/碳鋼/鈦鋼等。
管形：圓/方等
應用領域：建材/工程管/水管/流體管/鈦管/石化管/航天汽車管/飲用食品級管/衛生級管等領域
管材材質：不銹鋼/鐵/碳鋼/鈦鋼等。
管形：圓/方等
應用領域：建材/工程管/水管/流體管/鈦管/石化管/航天汽車管/飲用食品級管/衛生級管等領域

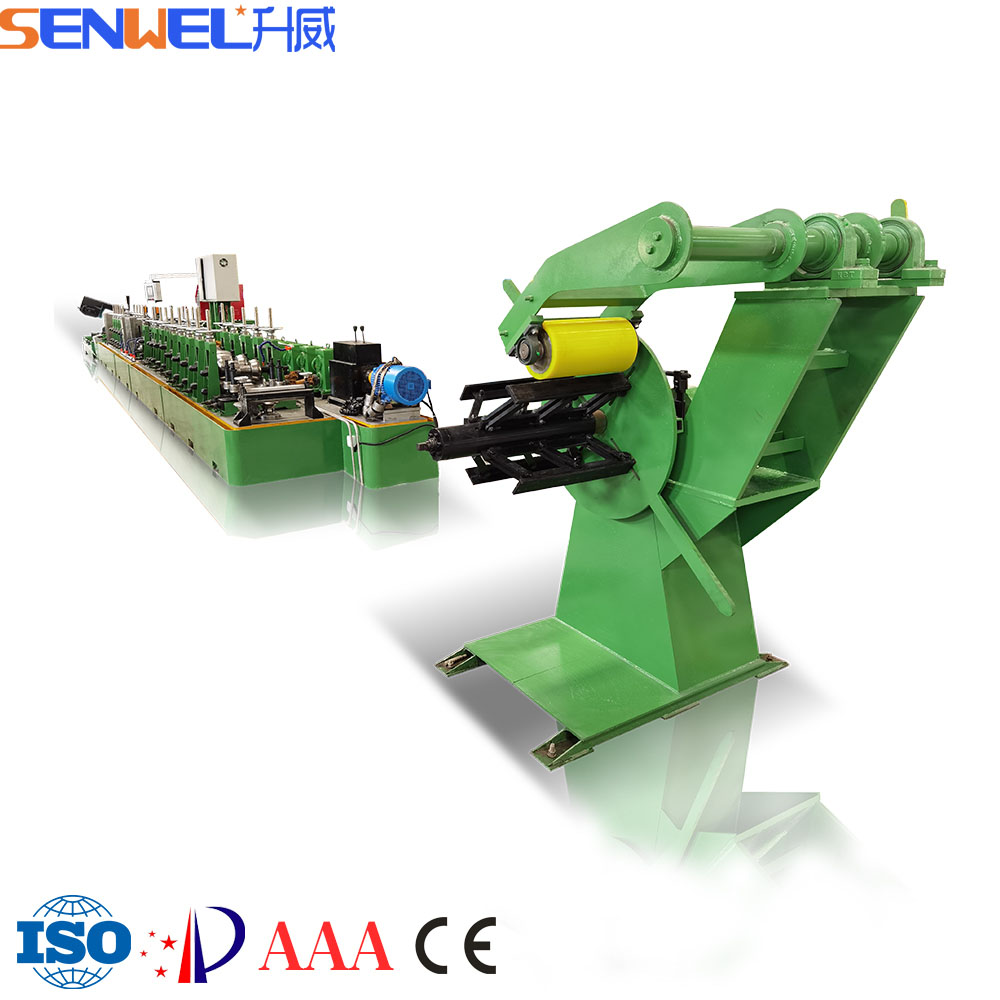

圓形/方形/矩形等不銹鋼/銅/碳鋼/鐵/鍍鋅等大口徑金屬管焊管機械設備
生產線
Round/Square/Rectangle Etc Stainless Steel/Copper/Carbon Steel/Iron/Galvanized Etc Large Diameter
Metal Pipe Making Machine Welding Tube Mill
大口徑金屬管焊管機是以生產大中型口徑和相對較厚的管材為主的設備。可以用于生產石化、高壓力、高流量等要求高的管材。此外，通過制管機配合模具設計加以焊接，可以直接輕松擠壓出不同的形狀成管材，如圓形，方形，矩形等形狀，適用于不銹鋼、鐵、碳鋼等金屬材質的管材制造。
管材材質：不銹鋼/鐵/碳鋼/鈦鋼等。
管形：圓/方等
應用領域：建材/工程管/水管/流體管/鈦管/石化管/航天汽車管/飲用食品級管/衛生級管等領域
Large diameter metal pipe welding making machine tube mill is a professional equipment which mainly produces large and medium-sized pipes and relatively thick pipes. It can be used in the production of petrochemical, high pressure, high flow and other high demand pipes. In addition, by welding the tube making machine with the die design, different shapes of tubes can be extruded directly and easily, such as round, square, rectangular and other shapes, which are suitable for the manufacture of stainless steel, iron, carbon steel and other metal materials.
TUBE MATERIAL:Stainless steel / iron / carbon steel / titanium steel, etc.
PIPE SHAPE:Round Square Etc
USDAGE:Building materials / Engineering pipeline/Water pipe / Fluid pipe / Titanium pipe / Petrochemical pipe / Aerospace Automobile pipe /Drinking food grade pipe/Hygienic grade pipes Etc
生產工藝/Production Process
開卷—LOGO/矯平—成型—焊接—打磨—定徑—調直—切割—落料
1:Decoiler 2:Flattening 3:Forming 4:Welding 5:Polishing 6:Sizing 7:Straightening 8:Cutting 9：Unloading
型號參數/Model & Parameter
型號 Model | GXG-50 | GXG-60 | GXG-70 | GXG-80 | GXG-90 | GXG-100 |
圓管管徑范圍Circular tube range(mm) |
?31.8—76.2 1-1/4”—3”
| ?50.8—114.0 2”—4-1/2”
| ?76.2—168
3”—6-5/8
| ?114.0—219.0
4-1/2”—8-1/2” | ?158.0—273.0
6-1/5”—10-3/4” | ?219.0—325.0
8-1/2”—12-4/5” |
壁厚范圍 Wall thickness range(mm) | 0.5—3.0 | 1.0—4.0 | 1.0—5.0 | 1.5—6.5 | 3.0—10.0 | 3.0—12.0 |
細節展示/Detail
制造工藝/manufacturing process Display
圖紙?jiān)O(shè)計—坯件鑄造—粗加工—CNC精加工—箱體加工—龍門銑床加工—部件組裝—機臺組裝—機組調試—包裝—裝車—安裝調試培訓
Design——Blank casting——Rough machining——CNC finish machining——Box processing——CNC Planer Mille processing——Parts assembly——Machine assembly——Debugging & testing——Packing——transport—— Installation and commissioning training
質量=設計+技術+經驗+材料+設備
Quality = Design + Technology + Experience + Materials + Equipment
如果您對我們企業和產品感興趣，或有更多的疑問想要咨詢，請告訴我們，我們將盡快給您回復，期待與您合作！
If you want to know more product information or other questions, please click here. We will serve you as soon as possible and look forward to cooperating with you.
